Green Unified Metallurgy: One Step from Oxides to Sustainable Bulk Alloys

What does One Step Metallurgy mean: from Oxides to Sustainable Bulk Alloys?

Our recent paper introduces a novel sustainable 'green' metallurgy approach to alloy production that consolidates the traditionally separate processes of metal extraction, alloying, and thermomechanical processing into a single operation. The methodology, referred to as hydrogen-based redox synthesis, proposes the direct conversion of metal oxides into fully densified bulk alloys in a sustainable, carbon-free manner. By leveraging hydrogen gas as a reducing agent, the process addresses environmental concerns and energy inefficiencies associated with fossil fuel-based metal extraction and high-temperature melting. The study focuses on Fe–Ni invar alloys as a demonstrator system, known for their exceptionally low thermal expansion but historically burdened by high CO2 emissions.

What characterizes the One-Step Sustainable Metallurgical Manufacturing Process?

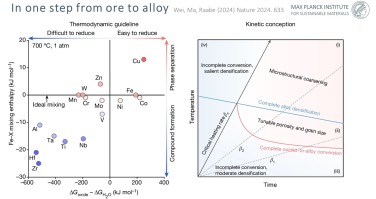

The proposed process merges metal extraction, atomic-level alloying, and material densification into one solid-state operation. By using hydrogen to reduce oxides at sub-melting temperatures, the method eliminates the need for liquid metal phases and fossil fuel reductants. It simultaneously facilitates material compaction, producing dense alloys directly from their oxide precursors. The process design leverages thermodynamic guidelines, enabling a more efficient pathway compared to conventional alloy production.

Three major challenges are addressed by the one-step process:


1. Elimination of CO2 emissions associated with traditional metal extraction.


2. Reduction in energy costs due to the avoidance of high-temperature liquid processing.


3. Utilization of hydrogen-driven diffusion processes for both reduction and densification.



In a single processing step to sustainable metallurgy for green metal production: https://www.nature.com/articles/s41586-024-07932-w In a single processing step to sustainable metallurgy for green metal production: https://www.nature.com/articles/s41586-024-07932-w

What are the Sustainability Effects and Energy Savings associated with One Step Metallurgy: from Oxides to Bulk Alloys?

The environmental benefits of the method are substantial. Traditional alloy production processes, especially for Fe–Ni invar alloys, are highly energy-intensive and environmentally detrimental. In this new method, CO2 emissions are completely eliminated due to the exclusive use of hydrogen as a reductant. The energy consumption is reduced by 41%, as the one-step process operates at temperatures significantly below the melting point of the involved metals.

This translates to energy savings of approximately 6.97 GJ per tonne of alloy, compared to the 16.8 GJ required by conventional alloy-making approaches. These savings are critical in advancing sustainable metallurgy, especially for industrially significant alloys.

One step from mixed transition metal oxides to sustainable bulk metallic alloys
https://www.nature.com/articles/s41586-024-07932-w
Nature Sept 2024 s41586-024-07932-w One[...]
PDF-Dokument [16.1 MB]

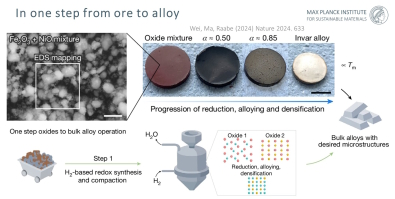

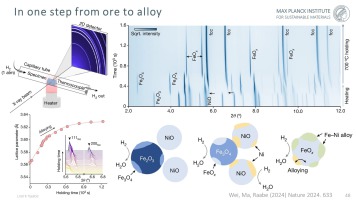

The elementary mechanisms behind the single processing step to sustainable metallurgy for green metal production: https://www.nature.com/articles/s41586-024-07932-w The elementary mechanisms behind the single processing step to sustainable metallurgy for green metal production: https://www.nature.com/articles/s41586-024-07932-w

What are the roles of Microstructure and Mechanical Properties in Sustainable One-Step Metallurgy?

The one-step process not only produces alloys with minimal environmental impact but also delivers highly desirable microstructural characteristics. The synthesized alloys exhibit fine-grained, fully densified structures. For Fe–Ni invar alloys, for example, grain size was reduced to approximately 0.58 μm, with nearly 100% densification. This fine-grain structure results in superior mechanical properties, such as enhanced hardness and toughness.

Additionally, the one-step process allows for the tunability of microstructural features by adjusting parameters such as temperature and heating rates. This tunability enables the customization of alloy properties for specific applications, ranging from precision instruments to cryogenic systems.

Sustainable Metals: Why did we pick Fe–Ni Invar Alloys as a Demonstrator Model Alloy System for One-Step Metallurgy?

Fe–Ni invar alloys were selected as the demonstrator system for this study due to their wide range of industrial applications and challenging production requirements. The paper details the synthesis of Fe–Ni invar alloy directly from Fe2O3 and NiO powders using the one-step redox process. The resulting alloy demonstrated a near-zero coefficient of thermal expansion over the temperature range of 25°C to 150°C, a key property for its use in precision devices.

In terms of mechanical properties, the invar alloy synthesized via the one-step process exhibited hardness values significantly higher than those produced through conventional melting and casting methods. These findings confirm the effectiveness of the hydrogen-based reduction method in delivering alloys that meet or exceed the performance standards of conventionally produced materials.

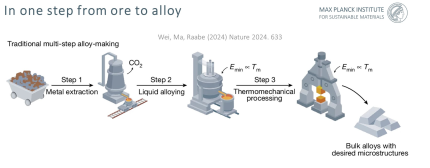

In a single processing step to sustainable metallurgy for green metal production: here: the traditional production method In a single processing step to sustainable metallurgy for green metal production: here: the traditional production method

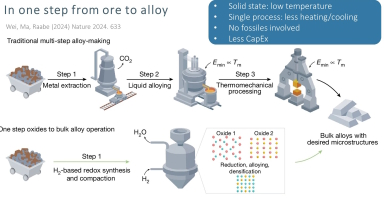

In a single processing step to sustainable metallurgy for green metal production: https://www.nature.com/articles/s41586-024-07932-w In a single processing step to sustainable metallurgy for green metal production: https://www.nature.com/articles/s41586-024-07932-w
In a single processing step to sustainable metallurgy for green metal production: https://www.nature.com/articles/s41586-024-07932-w In a single processing step to sustainable metallurgy for green metal production: https://www.nature.com/articles/s41586-024-07932-w

The bigger Picture behind sustainable Metallurgy, Metals and Green Alloys

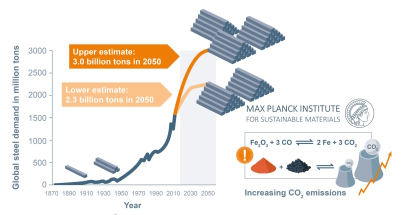

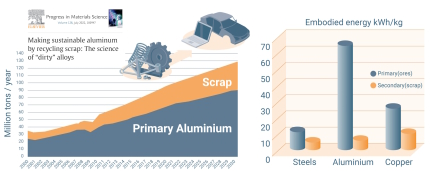

Production of metals stands for 40% of all industrial greenhouse gas emissions, 10% of the global energy consumption, 3.2 billion tonnes of minerals mined, and several billion tonnes of by-products every year. Therefore, metals must become more sustainable. A circular economy model does not work, because market demand exceeds the available scrap currently by about two-thirds. Even under optimal conditions, at least one-third of the metals will also in the future come from primary production, creating huge emissions. Although the influence of metals on global warming has been discussed with respect to mitigation strategies and socio-economic factors, the fundamental materials science to make the metallurgical sector more sustainable has been less addressed. This may be attributed to the fact that the field of sustainable metals describes a global challenge, but not yet a homogeneous research field. However, the sheer magnitude of this challenge and its huge environmental effects, caused by more than 2 billion tonnes of metals produced every year, make its sustainability an essential research topic not only from a technological point of view but also from a basic materials research perspective. Therefore, this paper aims to identify and discuss the most pressing scientific bottleneck questions and key mechanisms, considering metal synthesis from primary (minerals), secondary (scrap), and tertiary (re-mined) sources as well as the energy-intensive downstream processing. Focus is placed on materials science aspects, particularly on those that help reduce CO2 emissions, and less on process engineering or economy. The paper does not describe the devastating influence of metal-related greenhouse gas emissions on climate, but scientific approaches how to solve this problem, through research that can render metallurgy fossil-free. The content is considering only direct measures to metallurgical sustainability (production) and not indirect measures that materials leverage through their properties (strength, weight, longevity, functionality).

What is the Materials Science behind Sustainable Metals and Alloys?
https://pubs.acs.org/doi/full/10.1021/acs.chemrev.2c00799
acs.chemrev.2c00799_with_volume_ID_s.pdf
PDF-Dokument [6.2 MB]
The Future of Green Metallurgy The Future of Green Metallurgy
The Future of Green Metallurgy The Future of Green Metallurgy
