Atom probe tomography on Steels

Why conducting atom probe tomography on steels?

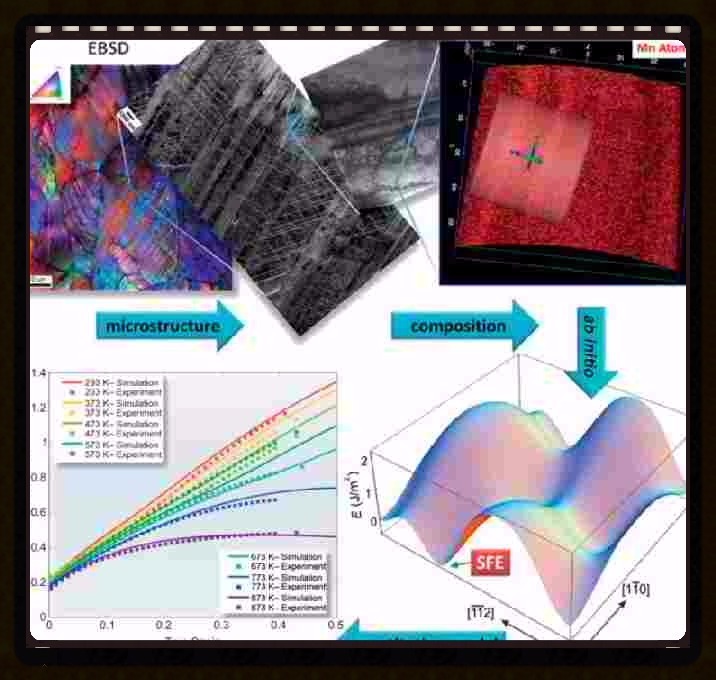

Conducting atomic scale chemical and structural analysis on steels is particularly exciting and also important for revealing basic structure-property relationships that are governed by the interplay between structural defects and their specific chemical decoration.  These effects have been considered since long, such as the famous Cottrell cloud, the Portevin-Chatellier mechanism or the Suzuki effect, yet, it has been up to now very difficult or even impossible to directly observe such mechanisms.  The use of atom probe tomography in conjunction with structure-resolving electron microscopy and atom probe crystallography allows us nowadays to reveal both, the mechanical and the structural features of such phenomena.  Better understanding the interplay of local chemical composition and the thermodynamics and kinetics of lattice defects puts us in a position for deriving composition-sensitive microscopic and mean-field structure-property-processing relationships even for complex metallurgical alloys.  Steel is a particularly interesting material to conduct such studies owing to its multiple interstitial and substitutional alloying elements, its complex lattice defect substructure and the various equilibrium and non-equilibrium phase transformations that occur in them.



How can core-shell nanoparticle arrays double the strength of ferritic steels?

Manipulating structure, defects and composition of a material at the atomic scale for enhancing its physical or mechanical properties is referred to as nanostructuring. Here, by combining advanced microscopy techniques, we show how formation of highly regular nano-arrays of nanoparticles doubles the strength of an Fe-based alloy, doped with Ti, Mo, and V, from 500 MPa to 1 GPa, upon prolonged heat treatment. The nanoparticles form at moving heterophase interfaces during cooling from the high-temperature face-centered cubic austenite to the body-centered cubic ferrite phase. We observe MoC and TiC nanoparticles at early precipitation stages as well as core-shell nanoparticles with a Ti-C rich core and a Mo-V rich shell at later precipitation stages. The core-shell structure hampers particle coarsening, enhancing the material’s strength. Designing such highly organized metallic core-shell nanoparticle arrays provides a new pathway for developing a wide range of stable nano-architectured engineering metallic alloys with drastically enhanced properties.



Core-shell nanoparticle arrays double the strength of steel Core-shell nanoparticle arrays double the strength of steel
Core-shell nanoparticle arrays double the strength of steel
Scientific Reports | 7:42547 | DOI: 10.1038/srep42547
Core-shell nanoparticle arrays double th[...]
PDF-Dokument [2.3 MB]

Martensite - to - austenite reversion through partitioning, segregation and kinetic freezing: a ductile 2 GPa Fe–Cr–C steel

In this project we studied carbon partitioning, retained austenite, austenite stabilization, martensite-to-austenite reversion, carbide formation and kinetic freezing of carbon during heat treatment of a martensitic stainless steel Fe–13.6Cr–0.44C (wt.%).  Austenite formation in carbon-enriched martensite–
austenite interface areas was confirmed by XRD, EBSD, TEM and APT. Both the formation of retained austenite and austenite reversion during low-temperature partitioning is discussed. The enrichment of carbon at martensite–martensite grain boundaries and martensite-retained austenite phase boundaries provides the driving force for austenite reversion. The reverted austenite zones have nanoscopic size (15–20 nm). The driving forces for austenite reversion are determined by local and not by global chemical equilibrium. Martensite-to-austenite reversion proceeds fast. This applies to both the formation of reversed austenite at retained austenite layers and austenite reversion among martensite laths. The volume fraction of austenite has nearly doubled after 2 min at 400°C. The carbides formed during tempering have M3C structure. With increasing tempering time the dispersion of the carbides decreases due to the Gibbs– Thomson effect.
During tempering between 300°C and 500°C carbon redistributes in three different ways. During quenching, in the vicinity of martensite–austenite interfaces, carbon segregates from the supersaturated martensite to both the hetero-interfaces and homophase grain boundaries. During tempering, carbon continuously partitions to martensite–austenite interfaces, driving the carbon-enriched areas towards austenite reversion (irrespective of whether the nucleation zones were initially retained or reversed austenite). Carbon inside martensite, far away from any interfaces, tends to form M3C carbides. This means that carbon segregates to martensite grain boundaries, to martensite–austenite interfaces, and forms carbides. We differentiate between three different types of austenite, namely, first, as-quenched retained austenite with nominal carbon content and low stability; second, retained austenite with increased carbon content and higher stability due to partitioning according to the local chemical potential of carbon; and third, reverted austenite.
The nanoscale structural changes lead to drastic improvements in the mechanical properties. A sample after 1 min tempering at 400°C has 2 GPa tensile strength with 14% total elongation. The strength increase is attributed to the high carbon content of the martensite and the interaction between dislocations and nano-sized carbides. The TRIP effect of the austenite during deformation, including the reverted nanoscale austenite, contributes to a strain-hardening capacity and, hence, promotes the ductility. Also, the topology of the reverted austenite is important: we suggest that the nanoscaled seam topology of the austenite surrounding the martensite acts as a soft barrier which has compliance and repair function. This might immobilize defects and prevent cracks from growth and inter-grain percolation. We attribute the fast nanoscale austenite reversion to an effect that we refer to as kinetic freezing of carbon. This means that the carbon is fast inside the martensite when leaving it but slow (and hence frozen) when entering the austenite. This means that carbon becomes trapped and highly enriched at the martensite–austenite interfaces owing to its low mobility within the austenite during low-temperature partitioning. This provides a much higher local driving force for austenite reversion. This means that the formation of nanoscaled reverted austenite depends mainly on the local but not on the global chemical potential of carbon at internal interfaces.

Martensite - to - austenite reversion through partitioning, segregation and kinetic freezing: a ductile 2 GPa Fe–Cr–C steel
Acta Materialia 60 (2012) 2790-2804
Acta Materialia 60 (2012) 2790–2804 Aust[...]
PDF-Dokument [1.8 MB]

Do Maraging Steel have Different Micro- and Nanostructures when Produced Conventionally and by Laser Additive Manufacturing?

Maraging steels are used to produce tools by Additive Manufacturing (AM) methods such as Laser Metal Deposition (LMD) and Selective Laser Melting (SLM). Although it is well established that dense parts can be produced by AM, the influence of the AM process on the microstructure - in particular the content of retained and reversed austenite as well as the nanostructure, especially the precipitate density and chemistry, are not yet explored. In this specific project, we study these features using microhardness measurements, Optical Microscopy, Electron Backscatter Diffraction (EBSD), Energy Dispersive Spectroscopy (EDS), and Atom Probe Tomography (APT) in the as-produced state and during ageing heat treatment. We find that due to microsegregation, retained austenite exists in the as-LMD- and as-SLM-produced states but not in the conventionally-produced material. The hardness in the as-LMD-produced state is higher than in the conventionally and SLM-produced materials, however, not in the uppermost layers. By APT, it is confirmed that this is due to early stages of precipitation induced by the cyclic re-heating upon further deposition—i.e., the intrinsic
heat treatment associated with LMD. In the peak-aged state, which is reached after a similar time in all materials, the hardness of SLM- and LMD-produced material is slightly lower than in conventionally-produced material due to the presence of retained austenite and reversed austenite formed during ageing.

Atom Probe Tomography Maraging Steel Laser Additive Manufacturing Atom Probe Tomography Maraging Steel Laser Additive Manufacturing

Do ordered kappa carbides occur also in ferritic low-density Fe–Mn–Al–C steels?

In this project we found direct atomic-scale evidence for the precipitation of non-stoichiometric kappa-carbides, (Fe,Mn)3(Fe,Al)Cx containing Al, in a ferritic-matrix-based high-Al weight reduced steel isothermally annealed at either 500 or 600°C. With increasing isothermal holding temperature: (i) the kinetics for gamma decomposition increases; (ii) the width of kappa-phase increases; (iii) the Mn content inside the kappa-carbide decreases; and (iv) the enrichment factors for solutes decrease. We observed that fine lamellae consisting of a2 and gamma-phase are formed by a eutectoid decomposition of the gamma phase, where the kinetics is controlled by the undercooling. Using TEM and APT, we also elucidated the solute partitioning at the atomic-scale and thus obtained insights into the transformation mechanism of the kappa-phase in the ferritic steel  matrix. Al atoms partitioned into the austenite at high temperatures as well as the diffusion of C are significant factors for needle-like formation of kappa-carbides.

Kappa carbides observed in a ferrite-based low-density Fe–Mn–Al–C alloy by transmission electron microscopy and atom probe tomography
Scripta Materialia 68 (2013) 348
Atom Probe Tomography weight reduced kap[...]
PDF-Dokument [1.0 MB]

Confined chemical and structural states at dislocations in steels: TEM-atom probe tomography study combined with multiscale modelling

In this project we investigated a novel confined chemical and structural phase state which is referred to as linear complexion state.

For this purpose we used high-purity cold-rolled martensitic Fe-9wt%Mn alloy. Tensile tests performed at room temperature after tempering for 6 h at 450°C showed discontinuous yielding. Such static strain ageing phenomena in Fe are usually associated with the segregation of interstitial elements such as C or N to

dislocations. Here we show by correlative transmission electron microscopy (TEM)/atom probe tomography (APT) experiments that in this case Mn segregation to edge dislocations associated with the formation of confined austenitic states causes similar effects. The local chemical composition at the
dislocation cores was investigated for different tempering temperatures by APT relative to the adjacent bcc matrix. In all cases the Mn partitioning to the dislocation core regions matches to the one between ferrite and austenite in thermodynamic equilibrium at the corresponding tempering temperature.
Although a stable structural and chemical confined austenitic state has formed at the dislocation cores these regions do not grow further even upon prolonged tempering. Simulation reveals that the high Mn enrichment along the edge dislocation lines (25 at.%Mn at 450°C) cannot be described merely as a
Cottrell atmosphere formed by segregation driven by size interaction. Thermodynamic calculations based on a multiscale model indicate that these austenite states at the dislocation cores are subcritical and defect-stabilized by the compression stress field of the edge dislocations. Phenomenologically, these
states are the 1D equivalent to the so-called complexions which have been extensively reported to be present at 2D defects, hence have been named linear complexions.

Confined chemical and structural states at dislocations in Fe-9wt%Mn steels Confined chemical and structural states at dislocations in Fe-9wt%Mn steels
Confined chemical and structural states at dislocations in Fe-9wt%Mn steels
Acta Materialia 124 (2017) 305-315
Confined Chemical Structural States disl[...]
PDF-Dokument [1.3 MB]

What are suited parameters for conducting Laser assisted atom probe studies on maraging TRIP steels?

In this propject a precipitation hardened maraging TRIP steel was analyzed using a pulsed laser atom probe. The laser pulse energy was varied from 0.3 to 1.9 nJ to study its effect on the measured chemical compositions and spatial resolution. The compositions of the nano-precipitates were not affected by
changes in the laser pulse energy, whereas the evaporation field
and charge state ratios showed a strong dependence on the laser
pulse energy.

Atom Probe Tomography APT Maraging Steel Laser Pulsed APT Atom Probe Tomography APT Maraging Steel Laser Pulsed APT
Pulsed-laser atom probe studies of a precipitation hardened maraging TRIP steel
Ultramicroscopy 111 (2011) 623
Atom probe tomography Ultramicroscopy TR[...]
PDF-Dokument [930.5 KB]

Methodological aspects for atom probe tomography characterization of heavily cold drawn pearlitic steel wire

In this project we studied methodological aspects of the atom probe tomography characterization of heavily cold drawn pearlitic steel wire. Pearlitic wires exhibit tensile strengths up to 7 GPa after severe plastic deformation. Such heavy wire deformation promotes refinement of the ferrite-cementite lamellar structure and gradual cementite decomposition. In our work, a Local Electrode Atom Probe 3000 (LEAP) was used to characterize the microstructural evolution of pearlitic steel.

Methodological aspects for atom probe tomography characterization of heavily cold drawn pearlitic steel wire Methodological aspects for atom probe tomography characterization of heavily cold drawn pearlitic steel wire

Influence of Si on the acceleration of the bainite transformation by preexisting martensite

In this project the Bainite transformation, which is one of the competing reactions that take place during the partitioning step in the Q&P process, was investigated focusing on the effect of pre-existing martensite on bainite transformation kinetics and crystallographic orientation, especially in steel with high Si content (2 wt%) compared with a Si-free steel. Bainite transformation was clearly accelerated by the pre-existing martensite in both Si-containing and Si-free steels. Bainite surrounds the pre-existing martensite in the Si-free steel,
whereas it grows to the interior of the austenite grains in the 2 wt% Si steel. The major orientation relationship between bainite and adjacent austenite was changed by the presence of martensite from N-Wto G-T regardless of Si addition. Clear carbon partitioning from martensite to austenite was observed prior to bainite transformation in 2 wt% Si steel, which was not observed in Si-free steel. The results obtained in this study suggest that the dislocations introduced by martensite transformation are profoundly contributing to the bainite acceleration phenomenon caused by the preexisting martensite.

Influence of Si on the acceleration of the bainite transformation by preexisting martensite Influence of Si on the acceleration of the bainite transformation by preexisting martensite
Influence of the Si content on the bainite transformation under the presence of pre-existing martensite in steels
Acta Materialia 116 (2016) 250
Effect of Si on bainite transformation a[...]
PDF-Dokument [2.5 MB]

Can we design Heusler phase nanoprecipitates in steels?

In this project we managed to design B2 NiMn and Ni2MnAl Heusler phase nanoprecipitates via elastic misfit stabilization in Fe–Mn maraging steels. The Heusler phases were studied in detail by combining transmission electron microscopy (TEM) correlated atom probe tomography (APT) with ab initio simulations. Guided by these predictions, the Al content of the alloys is systematically varied, and the influence of the Al concentration on structure stability, size and distribution of precipitates formed during ageing at 450 C is studied using scanning electron microscopy–electron backscatter diffraction,
TEM and APT. Specifically, the Ni2MnAl Heusler nanoprecipitates exhibit the finest sizes and highest dispersion and hence lead to significant strengthening. The formation of the different types of precipitates and their structure, size, dispersion and effect on the mechanical properties of the alloys are discussed.



Acta Materialia 76 (2014) 94–105: Heusler phase nanoprecipitates designed via elastic misfit stabilization in Fe–Mn maraging steels. Acta Materialia 76 (2014) 94–105: Heusler phase nanoprecipitates designed via elastic misfit stabilization in Fe–Mn maraging steels.
Acta Materialia 76 (2014) 94–105: Heusler nanoprecipitates by elastic misfit stabilization in Fe–Mn maraging steels
Acta Mater 2014 Fe–Mn maraging steels wi[...]
PDF-Dokument [2.6 MB]

Can segregation engineering help to design nanoscale martensite to austenite phase transformations at grain boundaries for making ductile martensite?

Here we show how in an Fe–9 at.% Mn maraging alloy, annealed at 450 °C, reversed allotriomorphic austenite nanolayers appear on former Mn deco-
rated lath martensite boundaries. The austenite films are 5–15 nm thick and form soft layers among the hard martensite crystals. We document the nanoscale segregation and associated martensite to austenite transformation mechanism using transmission electron microscopy and atom probe tomography. The phenomena are discussed in terms of the adsorption isotherm (interface segregation) in conjunction with classical heterogeneous nucleation theory (phase transformation) and a phase field model that predicts the kinetics
of phase transformation at segregation decorated grain boundaries. The analysis shows that strong interface segregation of austenite stabilizing elements (here Mn) and the release of elastic stresses from the host martensite can generally promote phase transformation at martensite grain boundaries. The phenomenon enables the design of ductile and tough martensite.



Segregation engineering enables nanoscale martensite to austenite phase transformation at grain boundaries: A pathway to ductile martensite Segregation engineering enables nanoscale martensite to austenite phase transformation at grain boundaries: A pathway to ductile martensite
Segregation engineering enables nanoscale martensite to austenite phase transformation at grain boundaries: A pathway to ductile martensite
Segregation engineering nanoscale marten[...]
PDF-Dokument [1.1 MB]



Acta Mat. 2011, 59, p. 364
