Cobalt and its Alloys




Atomic Number: 27
Atomic Mass: 58.9332 amu
Melting Point: 1495.0 °C (1768.15 K)
Number of Protons/Electrons: 27
Number of Neutrons: 32
Crystal Structure: Hexagonal / FCC

(At temperatures below 417°C cobalt exhibits a hexagonal close-packed structure. Between 417°C and its melting point of 1493°C, cobalt has a face-centered cubic structure.)
Density at 293 K: 8.9 g/cm3

Elastic modulus: 210 GPa

Date of Discovery: 1737

Discoverer: George Brandt
Name: From the German word kobalt or kobold (evil spirit)



The thermal expansion coefficient lies between those of iron and nickel.

The tomb of Pharaoh Tutankhamen, who ruled from 1361-1352 BC, contained a small glass object coloured deep blue with cobalt. Cobalt blue was known even earlier in China and was used for pottery glazes.

In 1730, chemist Georg Brandt of Stockholm became interested in a dark blue ore from some local copper workings and he eventually proved that it contained a hitherto unrecognised metal and he gave it the name by which its ore was cursed by miners in Germany, where it was sometimes mistaken for a silver ore. He published his results in 1739. For many years his claim to have uncovered a new metal was disputed by other chemists who said his new element was really a compound of iron and arsenic, but eventually it was recognised as an element in its own right.





Cobalt-Base Alloys

As a group, the cobalt-base alloys may be generally described as wear resistant, corrosion resistant, and heat resistant (strong even at high temperatures).

As a group, the cobalt-base alloys may be generally described as wear resistant, corrosion resistant, and heat resistant (strong even at high temperatures). Many of the properties of the alloys arise from the crystallographic nature of cobalt (in particular its response to stress), the solid-solution-strengthening effects of chromium, tungsten, and molybdenum, the formation of metal carbides, and the corrosion resistance imparted by chromium. Generally the softer and tougher compositions are used for high-temperature applications such as gas-turbine vanes and buckets. The harder grades are used for resistance to wear.

Historically, many of the commercial cobalt-base alloys are derived from the cobalt-chromium-tungsten and cobalt-chromium-molybdenum ternaries first investigated by Elwood Haynes in the beginning of 20th century. He discovered the high strength and stainless nature of the binary cobalt-chromium alloy, and he later identified tungsten and molybdenum as powerful strengthening agents within the cobalt-chromium system. When he discovered these alloys, Haynes named them the Stellite alloys after the Latin stella (star), because of their star-like luster. Having discovered their high strength at elevated temperatures, Haynes also promoted the use of Stellite alloys as cutting tool materials.





Cobalt-Base Wear-Resistant Alloys

The cobalt-base wear alloys of today are little changed from the early alloys of Elwood Haynes. The most important differences relate to the control of carbon and silicon (which were imparities in the early alloys). Indeed, the main differences in the current Stellite alloy grades are carbon and tungsten contents (hence the amount and type of carbide formation in the microstructure during solidification). Carbon content influences hardness, ductility, and resistance to abrasive wear. Tungsten also plays an important role in these properties.

Types of wear. There are several distinct types of wear which generally fall into three main categories:

Abrasive wear
Sliding wear
Erosive wear.
The type of wear encountered in a particular application is an important factor that influences the selection of a wear-resistant material.
Abrasive wear is encountered when hard particles, or hard projections (on a counter-face) are forced against, and moved relative to a surface. The terms high and low stress abrasion relate to the condition of the abrasive medium (be it hard particles or projections) after interaction with the surface. If the abrasive medium is crushed, then the high stress condition is said to prevail. If the abrasive medium remains intact, the process is described as low stress abrasion. Typically, high stress abrasion results from the entrapment of hard particles between metallic surfaces (in relative motion), while low stress abrasion is encountered when moving surfaces come into contact with packed abrasives, such as soil and sand.

In alloys such as the cobalt-base wear alloys, which contain a hard phase, the abrasion resistance generally increases as the volume fraction of the hard phase increases. Abrasion resistance is, however, strongly influenced by the size and shape of the hard phase precipitates within the microstructure and the size and shape of the abrading species.

Sliding Wear. Of the three major types of wear, sliding is perhaps the most complex, not in concept, but in the way different materials respond to sliding conditions. Sliding wear is a possibility whenever two surfaces are forced together and moved relative to one another. The chances of damage are increased markedly if the two surfaces are metallic in nature, and if there is little or no lubrication present.




Co-based Metallic Glasses

Recently ultrastrong Co-based metallic glasses were observed. The topology of metallic glasses without metalloids is strongly determined by dense atomic packing, whereas the topology of metal-metalloid metallic glasses is additionally influenced by strong covalent bonding. Due to the complex chemistry-topology-property relationships the design of metal-metalloid metallic Co-base ultrastrong glasses is challenging. The metal-metalloid Co-based metallic glasses discussed here possess a unique local atomic configuration, which leads to the combination of extraordinary high fracture strength of above 5000 MPa and high Young's modulus of 268 GPa. It is inferred in the literature that through chemically induced topology changes, properties such as glass formability, magnetic properties and mechanical properties can be enhanced. The Young's modulus as well as the elastic limit have also been reported to exhibit a strong topological dependence. In the case of Co-based metallic glasses it has been observed that the metal-metalloid short range order is strongly affecting the mechanical properties.





Cobalt-Base High-Temperature Alloys

For many years, the predominant user of high-temperature alloys was the gas turbine industry. In the case of aircraft gas turbines, the chief material requirements were elevated-temperature strength, resistance to thermal fatigue, and oxidation resistance. For land-base gas turbines, which typically burn lower grade fuels and operate at lower temperatures, sulfidation resistance was the major concern.

Today, the use of high-temperature alloys is more diversified, as more efficiency is sought from the burning of fossil fuels and waste, and as new chemical processing techniques are developed.

Although cobalt-base alloys are not as widely used as nickel and nickel-iron alloys in high-temperature applications, cobalt-base high-temperature alloys nevertheless play an important role, by virtue of their excellent resistance to sulfidation and their strength at temperatures exceeding those at which the gamma-prime- and gamma-double-prime-precipitates in the nickel and nickel-iron alloys dissolve. Cobalt is also used as an alloying element in many nickel-base high-temperature alloys.





Cobalt-Base Corrosion-Resistant Alloys

Although the cobalt-base wear-resistant alloys possess some resistance to aqueous corrosion, they are limited by grain boundary carbide precipitation, the lack of vital alloying elements in the matrix (after formation of the carbides or Laves precipitates) and, in the case of the cast and weld overlay materials, by chemical segregation in the microstructure.

By virtue of their homogeneous microstructures and lower carbon contents, the wrought cobalt-base high-temperature alloys (which typically contain tungsten rather than molybdenum) are even more resistant to aqueous corrosion, but still fall well short of the nickel-chromium-molybdenum alloys in corrosion performance.

To satisfy the industrial need for alloys which exhibit outstanding resistance to aqueous corrosion, yet share the attributes of cobalt as an alloy base (resistance to various forms of wear, and high strength over a wide range of temperatures), several low-carbon, wrought cobalt-nickel-chromium-molybdenum alloys are produced.



Elemental partitioning and mechanical properties of Ti- and Ta-containing Co–Al–W-base superalloys studied by atom probe tomography and nanoindentation
Elemental partitioning and mechanical properties of Ti- and Ta-containing Co–Al–W-base superalloys studied by atom probe tomography and nanoindentation
Acta Materialia 78 (2014) 78-85
Acta Mater 2014 Co base superalloy atom [...]
PDF-Dokument [768.8 KB]

Elemental partitioning and hardness in Ti- and Ta-containing Co-base superalloys, strengthened by gamma'-Co3(Al, W) precipitates, have
been studied by local measurements. Using atom probe tomography, we detect strong partitioning of W (partitioning coefficients from 2.4 to 3.4) and only slight partitioning of Al (partitioning coefficients 61.1) to the gamma'-Co3(Al, W) phase. Al segregates to the gamma/gamma' phase boundaries, whereas W is depleted at the gamma side of the boundaries after aging at 900°C and slow air cooling. This kind of Al segregation and W depletion is much less pronounced when water quenching is applied. As a result, these effects are considered to be absent at high temperatures and therefore should not influence the creep properties. Ti and Ta additions are found to strongly partition to the gamma' phase and greatly increase the gamma' volume fraction. Our results indicate that the alloying elements Al, W, Ti and Ta all occupy the B sublattice of the A3B structure (L12 type) and affect the partitioning behavior of each other. Nanoindentation measurements show that Ta also increases the hardness of the gamma' phase, while the hardness of the gamma channels remains nearly constant in all alloys. The change in hardness of the gamma' phase can be ascribed to the substitution of Al and W atoms by Ti and/or Ta.

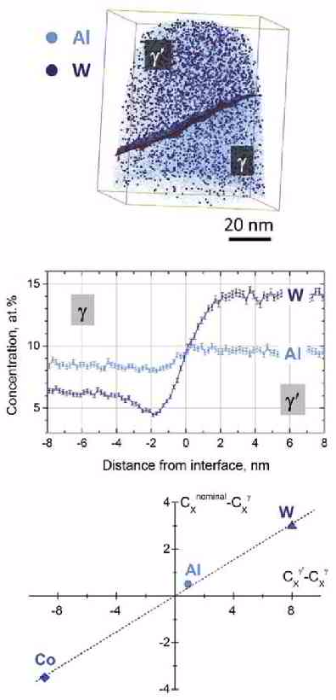

Cobalt base superalloy, Atom probe tomography, APT, partitioning concentration profiles and lever rule plot used for calculation of the gamma' volume fraction for the aged ternary Co–9Al–9W alloy. Atom probe tomography map, elemental concentration profiles and lever rule plot used for calculation of the gamma' volume fraction for the aged ternary Co–9Al–9W alloy.
Revealing the relationships between chemistry, topology and stiffness of ultrastrong Co-based metallic glass thin films: A combinatorial approach
Revealing the relationships between chemistry, topology and stiffness of ultrastrong Co-based metallic glass thin films: A combinatorial approach
Acta Materialia 107 (2016) 213-219
Acta Materialia 107 (2016) 213 combinato[...]
PDF-Dokument [2.3 MB]

An efficient way to study the relationship between chemical composition and mechanical properties of thin films is to utilize the combinatorial approach, where spatially resolved mechanical property measurements are conducted along a concentration gradient. However, for thin film glasses many properties
including the mechanical response are affected by chemical topology. Here a novel method is introduced which enables spatially resolved short range order analysis along concentration gradients of combinatorially synthesized metallic glass thin films. For this purpose a CoZrTaB metallic glass film of 3 um
thickness is deposited on a polyimide foil, which is investigated by high energy X-ray diffraction in transmission mode. Through the correlative chemistry-topology-stiffness investigation, we observe that an increase in metalloid concentration from 26.4 to 32.7 at% and the associated formation of localized
(hybridized) metal e metalloid bonds induce a 10% increase in stiffness. Concomitantly, along the same composition gradient, a metalloid-concentration-induced increase in first order metal - metal bond distances of 1% is observed, which infers itinerant (metallic) bond weakening. Hence, the metalloid
concentration induced increase in hybridized bonding dominates the corresponding weakening of metallic bonds.



Pair distribution functions with increasing Co content from bottom to top obtained by high energy X-ray diffraction are presented in a range from 1.5 to 10.5 Å. The data at the bottom were obtained fo Pair distribution functions with increasing Co content from bottom to top obtained by high energy X-ray diffraction are presented in a range from 1.5 to 10.5 Å. The data at the bottom were obtained for the highest Zr content.
Non-equiatomic high entropy alloys: Approach towards rapid alloy screening and property-oriented design
Non-equiatomic high entropy alloys: Approach towards rapid alloy screening and property-oriented design
Materials Science & Engineering A 648 (2015) 183-192
Mater Science Engin A648 (2015) 183–192 [...]
PDF-Dokument [3.8 MB]

The high entropy alloy (HEA) concept has triggered a renewed interest in alloy design, even though some aspects of the underlying thermodynamic concepts are still under debate. This study addresses the shortcomings of this alloy design strategy with the aim to open up new directions of HEA research targeting
specifically non-equiatomic yet massively alloyed compositions. We propose that a wide range of massive single phase solid solutions could be designed by including non-equiatomic variants. It is demonstrated by introducing a set of novel non-equiatomic multi-component CoCrFeMnNi alloys produced by
metallurgical rapid alloy prototyping. Despite the reduced configurational entropy, detailed characterization of these materials reveals a strong resemblance to the well-studied equiatomic single phase HEA: The microstructure of these novel alloys exhibits a random distribution of alloying elements (confirmed by Energy-Dispersive Spectroscopy and Atom Probe Tomography) in a single face-centered-cubic phase (confirmed by X-ray Diffraction and Electron Backscatter Diffraction), which deforms through planar slip (confirmed by Electron-Channeling Contrast Imaging) and leads to excellent ductility (confirmed by
uniaxial tensile tests). This approach widens the field of HEAs to non-equiatomic multi-component alloys since the concept enables to tailor the stacking fault energy and associated transformation phenomena which act as main mechanisms to design useful strain hardening behavior.



Stress–strain curves of all the alloys in their respective homogenized states, representative 27 Mn alloy both in cold rolled (64%) and recrystallized (900°C, 10 min) states for comparison. Stress–strain curves of all the alloys in their respective homogenized states, representative 27 Mn alloy both in cold rolled (64%) and recrystallized (900°C, 10 min) states for comparison.
A novel, single phase, non-equiatomic FeMnNiCoCr high-entropy alloy with exceptional phase stability and tensile ductility
A novel, single phase, non-equiatomic FeMnNiCoCr high-entropy alloy with exceptional phase stability and tensile ductility
Scripta Materialia 72–73 (2014) 5-8
2014_Article_Scripta_FeMnNiCoCr.pdf
PDF-Dokument [1.4 MB]

A non-equiatomic FeMnNiCoCr alloy is introduced and characterized at multiple scales employing various characterization techniques (e.g. atom probe tomography, electron channeling contrast imaging, electron backscatter diffraction, etc.) to elucidate (i) the role of configurational entropy and (ii) the intrinsic tensile ductility of high-entropy alloys. Results reveal that the new material is a true high-entropy alloy with a stable random solid solution despite its comparably low configurational entropy, and that it has excellent tensile ductility irrespective of the substantial lattice distortion.

Homogenized microstructure: (a) OM image; (b) SE image; (c, d) low- and high-resolution EBSD phase maps with image quality overlay; (e) EDX maps of the same area; (f, g) element distribution analyses Homogenized microstructure: (a) OM image; (b) SE image; (c, d) low- and high-resolution EBSD phase maps with image quality overlay; (e) EDX maps of the same area; (f, g) element distribution analyses from two APT tips.
Ab initio thermodynamics of the CoCrFeMnNi high entropy alloy: Importance of entropy contributions beyond the configurational one
Ab initio thermodynamics of the CoCrFeMnNi high entropy alloy: Importance of entropy contributions beyond the configurational one
Acta Materialia 100 (2015) 90-97
Acta Materialia 100 (2015) 90 Ab initio [...]
PDF-Dokument [528.5 KB]

We investigate the thermodynamic properties of the prototype equi-atomic high entropy alloy (HEA) CoCrFeMnNi by using finite-temperature ab initio methods. All relevant free energy contributions are considered for the hcp, fcc, and bcc structures, including electronic, vibrational, and magnetic excitations. We predict the paramagnetic fcc phase to be most stable above room temperature in agreement with experiment. The corresponding thermal expansion and bulk modulus agree likewise well with experimental measurements. A careful analysis of the underlying entropy contributions allows us to identify that the originally postulated dominance of the configurational entropy is questionable. We show that vibrational, electronic, and magnetic entropy contributions must be considered on an equal footing to reliably predict phase stabilities in HEA systems.

Phase stability of non-equiatomic CoCrFeMnNi high entropy alloys
Phase stability of non-equiatomic CoCrFeMnNi high entropy alloys
Acta Materialia 98 (2015) 288-296
Acta Mater 98 (2015) 288 Non-Equiatomic [...]
PDF-Dokument [636.7 KB]

The objective of this study is to experimentally and theoretically investigate the phase stability of non-equiatomic FexMn62ÿxNi30Co6Cr2 based high entropy alloys, where x ranges from 22 to 42 at.%. Another aim is to systematically and critically assess the predictive capability of the CALPHAD approach for such high entropy alloy systems. We find that the CALPHAD simulations provide a very consistent assessment of phase stability yielding good agreement with experimental observations. These include the equilibrium phase formation at high temperatures, the constituent phases after non-equilibrium solidification processes, unfavorable segregation profiles inherited from solidification together with the associated nucleation and growth of low temperature phases, and undesired martensitic transformation effects. Encouraged by these consistent theoretical and experimental results, we extend our simulations to other alloy systems with equiatomic compositions reported in the literature. Using these other equiatomic model systems we demonstrate how systematic CALPHAD simulations can improve and accelerate the design of multicomponent alloy systems.

Composition Dependence of Phase Stability, Deformation Mechanisms, and Mechanical Properties of the CoCrFeMnNi High-Entropy Alloy System
Composition Dependence of Phase Stability, Deformation Mechanisms, and Mechanical Properties of the CoCrFeMnNi High-Entropy Alloy System
JOM, Vol. 66, No. 10, 2014, page 1993
High entropy alloys JOM 2014 Tasan et al[...]
PDF-Dokument [2.4 MB]

The proposal of configurational entropy maximization to produce massive
solid-solution (SS)-strengthened, single-phase high-entropy alloy (HEA) systems
has gained much scientific interest. Although most of this interest
focuses on the basic role of configurational entropy in SS formability, setting
future research directions also requires the overall property benefits of massive
SS strengthening to be carefully investigated. To this end, taking the
most promising CoCrFeMnNi HEA system as the starting point, we investigate
SS formability, deformation mechanisms, and the achievable mechanical
property ranges of different compositions and microstructural states. A comparative assessment of the results with respect to room temperature behavior of binary Fe-Mn alloys reveals only limited benefits of massive SS formation. Nevertheless, the results also clarify that the compositional requirements in this alloy system to stabilize the face-centered cubic (fcc) SS are sufficiently relaxed to allow considering nonequiatomic compositions and exploring improved strength–ductility combinations at reduced alloying costs.





Acta Mat. 2011, 59, p. 364
