# Crystal Plasticity Finite Element Method

The elastic-plastic deformation of crystalline multiphase aggregates depends on the direction of loading, i.e. crystals are **mechanically
anisotropic**.

The directionality or orientation dependence of the mechanical response of crystals under load is due to the anisotropy of the elastic tensor and

to the orientation dependence of the activation of certain crystallographic **deformation mechanisms** (dislocations, twins,
martensite).

A consequence of crystalline anisotropy is that the associated mechanical phenomena such as shape change, crystallographic texture

evolution, strength, strain hardening, deformation-induced surface roughening, damage, and fracture are also orientation dependent. This is not a

trivial statement since it implies that mechanical parameters of crystalline matter are tensor quantities.

An example is the uniaxial stress-strain curve, which is the most important mechanical measure in structural materials design. The statement above means that such flow curves represent an
incomplete measure since they reduce a 6-dimensional yield surface and its change upon loading to a 1-dimensional (scalar) yield curve.

Another consequence of this statement is that **crystallographic texture** and its evolution during forming is a quantity that is
inherently connected with plasticity theory. The texture describes the orientation distribution of a crystalline portion of matter. It can, therefore, be used to describe the integral

anisotropy of polycrystals in terms of the individual tensorial behavior of each grain and the orientation dependent boundary conditions among the crystals.

Formally, the connection between crystallographic shear and texture evolution becomes also clear from the fact that any deformation gradient can be expressed as the product of its skew-symmetric
portion, which represents a pure rotation leading to texture changes if not exactly matched by the rotation implied by plastic shear, and a symmetric tensor that is a measure of pure
stretching. This means that plastic shear creates, as a rule both shape changes and orientation changes, except for certain highly symmetric shears. Hence, a theory of the mechanical properties
of crystals must include first, the crystallographic and anisotropic nature of those mechanisms that create shear and second, the orientation(s) of the crystal(s) studied relative to the
applied **boundary conditions** (e.g. loading axis, rolling plane).

Early approaches to describe anisotropic plasticity under simple boundary conditions have considered these aspects, such as for instance the Sachs, Taylor, Bishop-Hill, or Kröner
formulations.

However, these approaches were neither designed for considering explicitly the complex mechanical interactions among the crystals in a polycrystal nor for responding to complex internal or
external boundary conditions.

Instead, they are built on certain assumptions of strain or stress homogeneity to cope with the **intricate interactions** within a
**polycrystal**. For that reason variational methods in the form of
finite element approximations have gained enormous momentum in the field of crystal plasticity. These methods, which
are referred to as crystal plasticity finite element (CPFE) models, are based on the variational solution of the equilibrium
of the forces and the compatibility of the displacements using a weak form of the principle of virtual work in a given finite

volume element. The entire sample volume under consideration is discretized into such elements. The essential step which renders the deformation kinematics of this approach a crystal
plasticity formulation is the fact that the velocity gradient is written in dyadic form. This reflects the tensorial crystallographic nature of the underlying defects that lead to shear and
consequently, to both shape changes (symmetric part) and lattice rotations

(skew-symmetric part). This means that the CPFE method has evolved as an attempt to employ some of the extensive knowledge gained from experimental and theoretical studies of single crystal
deformation and dislocations to inform the further development of continuum field theories of deformation. The

general framework supplied by variational crystal plasticity formulations provides an attractive vehicle for developing a comprehensive theory of plasticity that incorporates existing knowledge of
the physics of deformation processes with the conceptual and computational tools of continuum mechanics to develop advanced and physically based design tools for engineering applications.

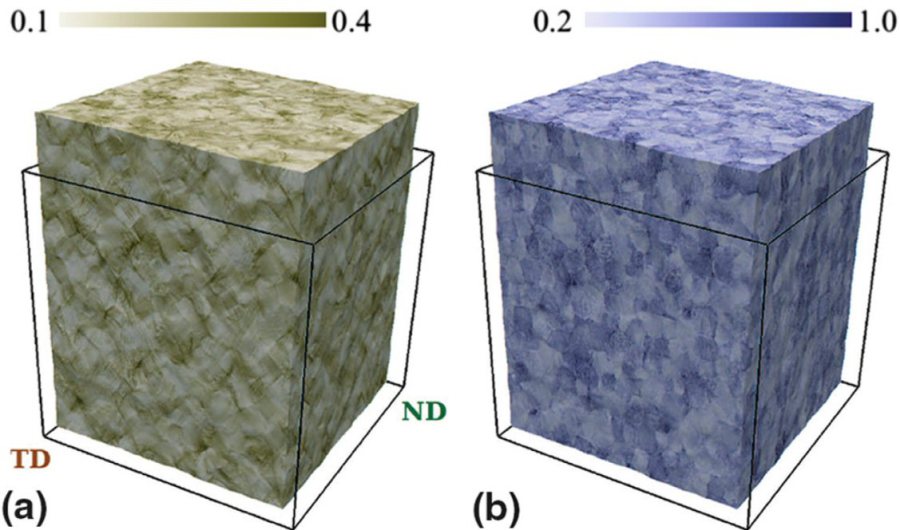

One main advantage of **CPFE models** lies in their capability of solving crystal mechanical problems under complicated internal
and/or external boundary conditions. This aspect is not a mere computational advantage but it is an inherent part of the physics of crystal mechanics since it enables one to tackle those
boundary conditions that are imposed by inter- and **intra-grain micro-mechanical interactions**.

However, the success of CPFE methods is not alone built on their efficiency in dealing with complicated boundary conditions. They also offer high flexibility with respect to including various constitutive formulations for the flow and hardening behavior at the elementary shear system level. The corresponding constitutive flow laws that were suggested during the last decades have gradually developed from empirical viscoplastic formulations into physics-based multiscale internal-variable models of plasticity including a variety of size-dependent and interface mechanical effects.

In this context it should be emphasized that the finite element method is in itself not the actual model but the variational solver for the underlying constitutive equations mapping the anisotropy of elastic-plastic shears associated with the various types of lattice defects.

**DAMASK – The Düsseldorf Advanced Material Simulation Kit for modeling multi-physics crystal plasticity, thermal, and damage phenomena from the single crystal up to the component scale**

Computational Materials Science 158 (2019) 420–478

DAMASK – Duesseldorf Advanced Material S[...]

PDF-Dokument [10.5 MB]

**Overview of constitutive laws, kinematics, homogenization and multiscale methods in crystal plasticity finite-element modeling: Theory, experiments, applications**

Acta Materialia 58 (2010) 1152–1211

Crystal Plasticity Finite Element Method[...]

PDF-Dokument [6.3 MB]

**Integrated experimental–simulation analysis of stress and strain partitioning in multiphase alloys**

Acta Materialia 81 (2014) 386–400

Acta Mater 81 (2014) 386 stress strain p[...]

PDF-Dokument [1.6 MB]

**Three-dimensional investigation of the texture and microstructure below a nanoindent in a Cu single crystal using 3D EBSD and crystal plasticity finite element simulations**

Acta Materialia 54 (2006) 1863–1876

Acta Materialia 54 (2006) 1863 3D indent[...]

PDF-Dokument [948.4 KB]

**Using texture components in crystal plasticity finite element simulations**

International Journal of Plasticity 20 (2004) 339–361

International Journal Plasticity 20 (200[...]

PDF-Dokument [841.7 KB]

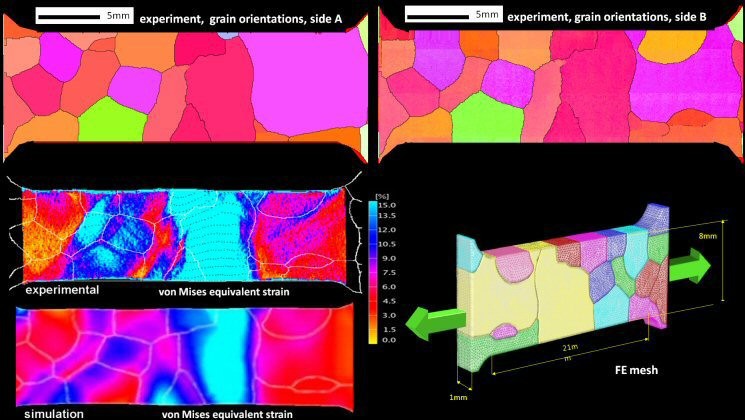

**Experimental investigation of plastic grain interaction**

Materials Science and Engineering A336 (2002) 81–87

Mater Sc Engin A336 (2002) 81 interactio[...]

PDF-Dokument [682.0 KB]

**Dislocation density distribution around an indent in single-crystalline nickel: Comparing nonlocal crystal plasticity finite-element predictions with experiments**

Acta Materialia 71 (2014) 333–348

Acta Materialia 71 (2014) 333 crystal pl[...]

PDF-Dokument [1.4 MB]

**microstructure-based description of the deformation of metals: theory and application**

JOM, April 2011

2011-overview-microstructure-models-JOM.[...]

PDF-Dokument [1.5 MB]

**Virtual material testing for stamping simulations based on polycrystal plasticity**

Computational Materials Science 46 (2009) 383–392

Computational Materials Science 46 (2009[...]

PDF-Dokument [2.5 MB]

**Theory of orientation gradients in plastically strained crystals**

Acta Materialia 50 (2002) 421–440

Acta Materialia 50 (2002) 421 crystal pl[...]

PDF-Dokument [728.5 KB]

**Integrated experimental–simulation analysis of stress and strain partitioning in multiphase alloys**

Acta Materialia 81 (2014) 386–400

Acta Mater 81 (2014) 386 dual phase stee[...]

PDF-Dokument [1.6 MB]

**Plastic anisotropy of electro-deposited pure a-iron with sharp crystallographic <111>// texture in normal direction: Analysis by an explicitly dislocation-based crystal plasticity model**

International Journal of Plasticity 52 (2014) 18–32

Int J Plasticity bcc crystal plasticity [...]

PDF-Dokument [6.3 MB]

**A dislocation density-based crystal plasticity constitutive model for prismatic slip in a-titanium**

Acta Materialia 59 (2011) 7003–7009

Acta Materialia 59 (2011) 7003 titanium [...]

PDF-Dokument [337.4 KB]

**Study on the orientational stability of cube-oriented FCC crystals under plane strain by use of a texture component crystal plasticity ﬁnite element method**

Scripta Materialia 50 (2004) 1085–1090

Scripta Mater vol 50 (2004) 1085 stabili[...]

PDF-Dokument [530.7 KB]
